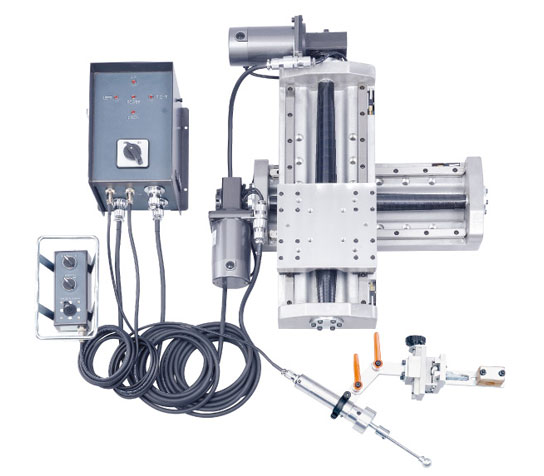

SEAM TRACKER



Model Specification Accessories Option
XY TABLE T200 Range：200mm W：18.5Kg 1. 90Vdc 120W 3200RPM
2. 1/30 Speed：380mm/Min Load：160Kg
　1/40 Speed：300mm/Min Load：180Kg
　1/50 Speed：240mm/Min Load：200Kg
　1/60 Speed：200mm/Min Load：220Kg

T300 Range：300mm W：21Kg
T500 Range：500mm W：26.5Kg


XY CONTROL
XY-C10.03 Input：110Vac 50/60Hz 5Ax2
Output：Max42Vdc
W：8.5Kg		   X.Y Cable 45M × 2
Remote Control × 1
Remote Cable 3M × 1
PROBE SENSOR S.A-10.03 Mini XY Range：50mm
Load：5Kg
W：2.8Kg		   Sensor Cable 3M × 1
Adjust × 1 Set
Sensor Tip (round) × 3
Sensor Tip (hook) × 2

Applied Property：

  • Automatic Combination：XY Table＋XY Control(XY-C10.03)＋Sensor Assembly(S.A-10.03)
                                        Moving Property：The product can be automatic track and tiny adjust to up、down、left、right.
  • Semi-Automatic Combination：XY Table＋XY Control(XY-C10.03)
                                                Moving Property：You can use remote control to move up、down、left、right by visional
                                                observation.
  • Manual Combination：XY Table (We replaced gear motor with coaxial gear)
                                    Moving Property：You can move XY Table to up、down、left、right by coaxial gear.
