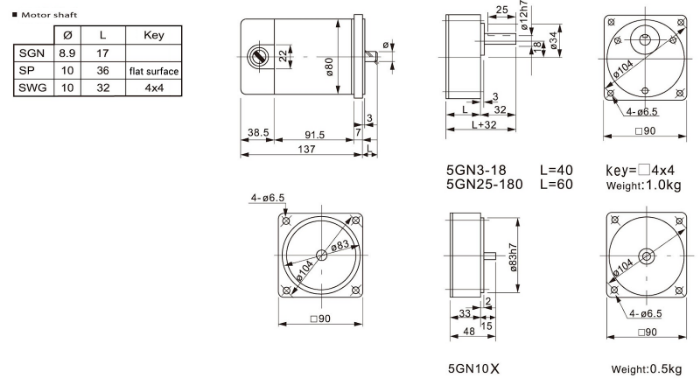

10 SP/SWG/SGN General Specification of Direct Current Motor
| Type | General Specification | ||||||
| VOLTAGE (vdc) |
AMPS (A) |
SPEED (RPM) |
OUTPUT (W) |
TORQUE (kg-cm) |
RATING (min) |
WEIGHT (kg) |
|
| 10 | 12 | 9 | 1800 | 65 | 3.5 | CONT | 2.2 |
| 24 | 4.5 | ||||||
| 90 | 1.2 | ||||||
| 180 | 0.6 | ||||||
| 12 | 14 | 3200 | 120 | 3.66 | 30 min | 2.3 | |
| 24 | 6.8 | ||||||
| 90 | 1.8 | ||||||
| 180 | 0.9 | ||||||
