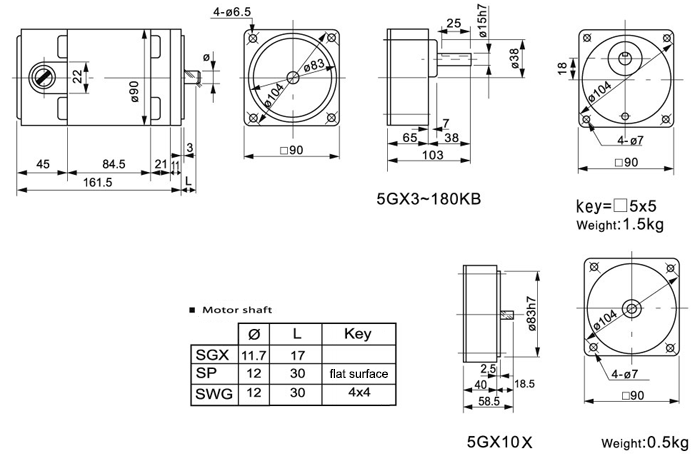

M29 SP/SWG/SGX General Specification of Direct Current Motor
| Type | General Specification | ||||||
| VOLTAGE (vdc) |
AMPS (A) |
SPEED (RPM) |
OUTPUT (W) |
TORQUE (kg-cm) |
RATING (min) |
WEIGHT (kg) |
|
| M29 | 12 | 13 | 1800 | 100 | 7 | CONT | 3.4 |
| 24 | 6.5 | ||||||
| 90 | 1.7 | ||||||
| 180 | 0.85 | ||||||
| 12 | 24 | 3600 | 200 | 6.5 | 30 min | 3.5 | |
| 24 | 12 | ||||||
| 90 | 3.2 | ||||||
| 180 | 1.6 | ||||||
