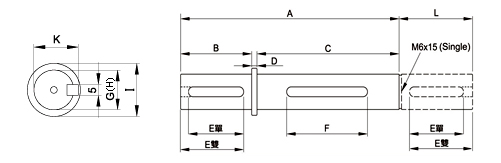

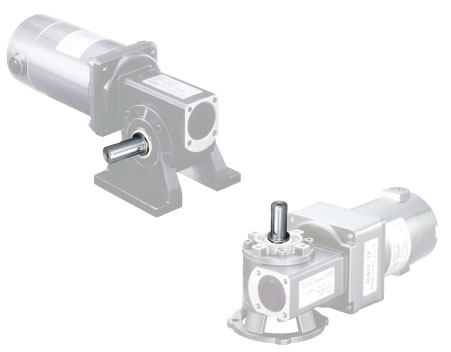

Worm Gear Output Shaft

Type

A

B

C

D

E
key

F
key

G

H

I

J

K

L

Weight
kg

25

102

35

Single 65

2

Single 5×5×25

5×5×60

Ø15

Ø15

Ø18

M6×15

17.3

36.5

Single 0.17

Double 66

Double 5x5x30

Double 0.28

35

122

40

Single 79

3

Single 5×5×30

5×5×70

Ø18

Ø18

Ø22

M6×15

20.3

41.5

Single 0.23

Double 80

Double 5×5×35

Ø24

Double 0.38
