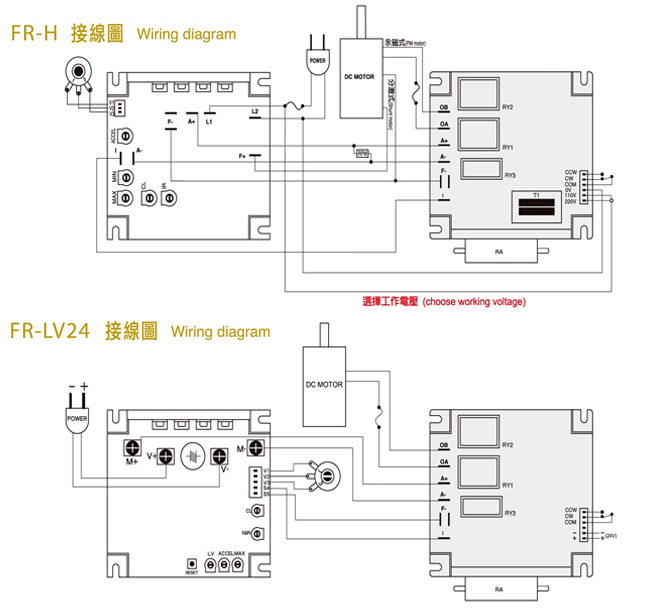

Forward and Reverse Control

  • FR-H working voltage, 110/220 Vac, 50/60 Hz.
  • FR-LV24 working voltage, 24 Vdc.
  • Maximum working electric current 10A.
  • Frequency of work 20 times per min.
  • Forward and reverse (VR1, VR2) has answering time：0.5~3 seconds.
  • The control needs to match up of type B or type C control.
  • Under the situation of high inertia, please use primary side of speed control to decelerate first and then conduct forward and reverse movement.
  • When shift forward and reverse, it will stop first before they start to rotate.
