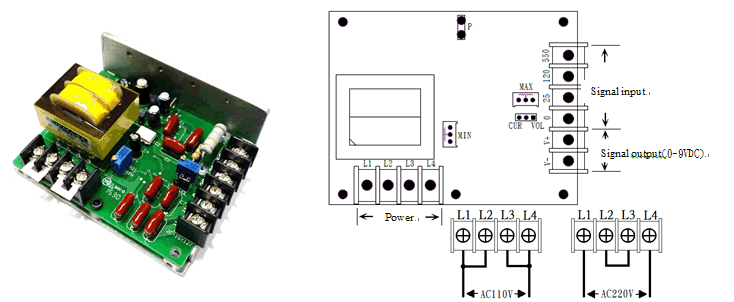

XJC-S Signal Isolator


Rated Specification :

Power Vac 50/60 Hz 110 / 220
Signal input voltage Vdc 0 ~ 550
Signal input current mA 1 ~ 50
Output voltage Vdc 0 ~ 9
Rated current mA 10
Min adjustment range Vdc 0 ~ 3
Max adjustment range Vdc ~ 13
Weight g 200

Usage And Functions :

  • XJC-S can input the voltage signal or current signal.
  • Output voltage (0~9VDC) can take MAX、MIN to amendment.
  • Try to adjustment the MAX、MIN, make the output V+、V- is 0~9VDC.

Signal Input Mode Instruction :

  • Voltage input mode
    (Jumper setting) : VOL

    Range of Input (VDC) Relativity pin (+) Relativity pin (-)
    0 ≤ V ≤ 25 25 0
    25 < V ≤ 120 120 0
    120 < V ≤ 550 550 0
  • Current input mode
    Hardware setting :

    Range of Input (mA) Jumper Setting Use Resistor
    1 ≤ I ≤ 5 VOL 1K Ω 1W
    5 < I ≤ 20 CUR
    20 < I ≤ 50 CUR 150 Ω 1W

Applicability wiring diagram :

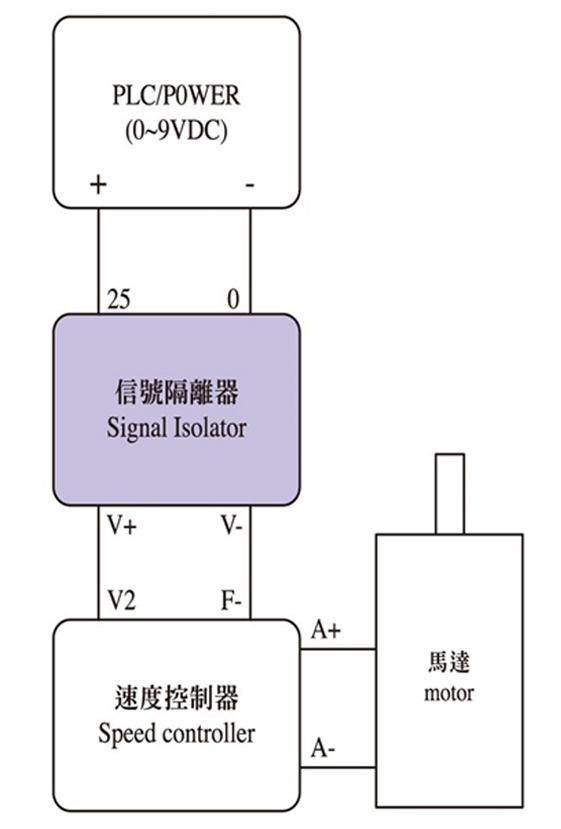

◎ Regard PLC as isolation control
◎ Main / Follower motor - gang control
◎ Main motor mode - multiple gang control

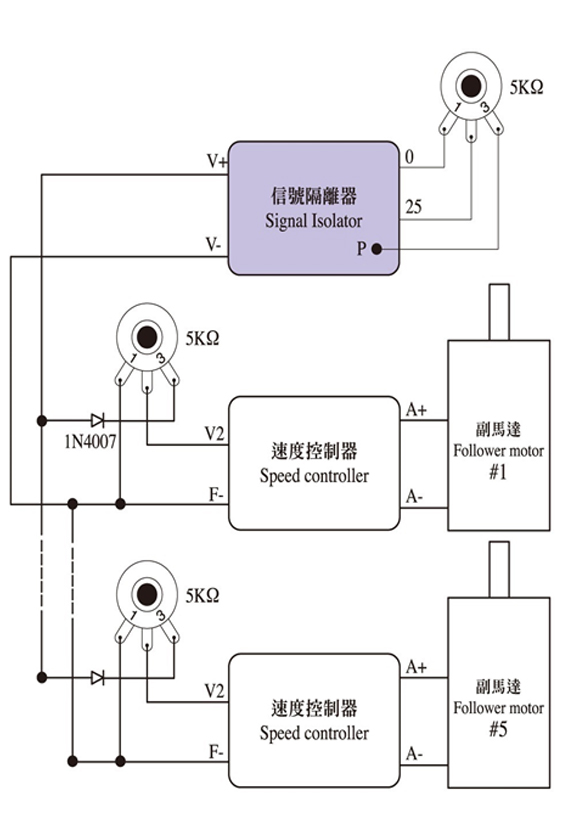

◎ Potentiometer mode - multiple gang control
  ★The V2 and F- is connect where (XAJONG speed controller) relativity pin by voltage.
